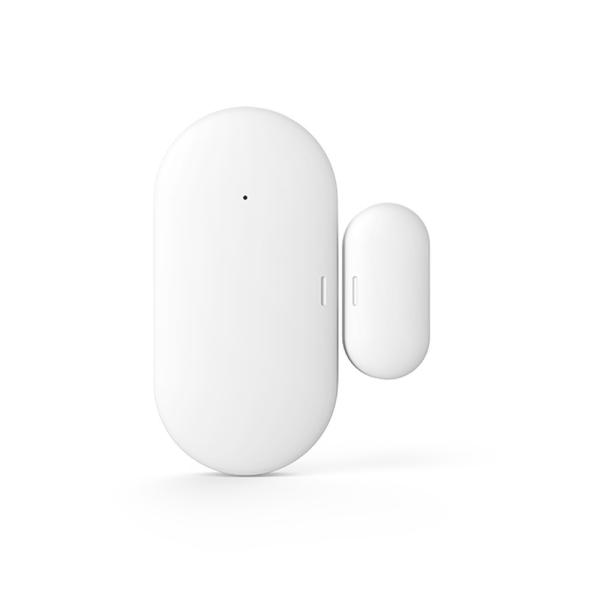

CR2032 Tuya Door Sensor Zigbee 100m Communication Distance

Name: CR2032 Tuya Door Sensor Zigbee 100m Communication Distance
Brand: Multi IR
Price: 1 USD

CR2032 Tuya Door Sensor Zigbee 100m Communication Distance Manufactures

Brand Name : Multi IR

Model Number : MIR-IR100

Certification : CE,FCC,ROHS

Place of Origin : Shenzhen, China

MOQ : Standard packing 200pcs. OEM packing 2000pcs

Price : Negotiable

Payment Terms : T/T in advance

Supply Ability : 5000pcs/day

Delivery Time : 25 working days

Packaging Details : 160PCS/CTN, Carton size: 315*275*260mm

Product Name : Tuya Zigbee Door Sensor

Communication protocol : Zigbee

Transmission Frequency : 2.4GHz(Not support 5GHz)

Transmission Power : ≤15dBm

Communication Distance : 100m (open air)

Working Voltage : DC 3V (CR2032)

Battery life : 1 year(20 times a day)

Working temperature : -10℃～+55℃

Contact Now

Zigbee Door Sensor, CR2032 Battery, 1 Year Battery Life, Low Voltage Remind, Tuya App Control

Connected Cameras

To secure your home property, you can set the Zigbee door sensor connected with cameras. When the door sensor opens, you can check for your cameras on App who is in your home.

Function description

【Door Open Detection】 When the zigbee door window opens, it sends an alert to the smart gateway and push notification to the user's Smart Life App on the smartphone.

【1 Year Battery Life】Battery type: CR2032 (include). Battery life for 1 year.

【Tamper Switch】The door sensor is with a tamper switch at the back, when someone takes the door sensor off, it will alarm the users.

Technical parameters

Communication protocol	Zigbee
Transmission Frequency	2.4GHz
Transmission Power	≤15dBm
Communication Distance	100m (open air)
Working Voltage	DC 3V (CR2032)
Alarm Distance	≥20mm
Low battery indication	2.6V±0.2V
Standby current	≤10uA
Working current	≤30mA
Working temperature	-10℃～+55℃
Battery life	more than a year(20 times a day)
Dimension	Mainbody: 52.5mmx26.5mmx13.8mm Magnet: 25.5mmx12.5mmx13mm

CR2032 Tuya Door Sensor Zigbee 100m Communication Distance
