5V Tuya Zigbee Smart Gateway Hub 3.0

Name: 5V Tuya Zigbee Smart Gateway Hub 30
Brand: Multi IR
Price: 1 USD

5V Tuya Zigbee Smart Gateway Hub 3.0 Manufactures

Brand Name : Multi IR

Model Number : MIR-GW100

Certification : CE,FCC,ROHS

Place of Origin : Shenzhen, China

MOQ : Standard packing 200pcs. OEM packing 2000pcs

Price : Negotiable

Payment Terms : T/T in advance

Supply Ability : 5000pcs/day

Delivery Time : 25 working days

Packaging Details : 120PCS/CTN, Carton size: 405*375*335mm

Product Name : Zigbee Hub

Wireless Technology : Wi-Fi 802.11 B/g/n Zigbee 3.0

Zigbee module : TYZS3

Communication Distance : 100m (open air)

Working Voltage : Micro USB DC 5V

Working current : 1A

Working temperature : -10℃～+55℃

Working humidity : 10%-90%RH

Connecting devices : 32

Dimension : 75*23mm

Contact Now

Tuya Zigbee Smart Hub, Smart Gateway Wireless Home Control System

Function descriptions

[2.4G WiFi, not support 5G] Tuya ZigBee gateway supports a 2.4G WiFi network, not support 5G, when configuring the network, please pay attention to it. The device communication network is ZigBee 3.0.

[Zigbee Device compatible] Product with tuya ZigBee solution can be well connected to our tuya Zigbee hub, including switches, cameras, sockets, sensors, door locks, electric curtains, infrared remote controls, etc.

[Support 32 devices] Our Zigbee gateway can connect to at least 32pcs, which is enough for small houses or apartment buildings.

Technical parameters

Wireless Technology	Wi-Fi 802.11 b/g/n
Wireless Technology	Zigbee 3.0
Zigbee moduel	TYZS3
Communication Distance	100m (open air)
Working Voltage	Micro USB DC 5V
Working current	1A
Working temperature	-10℃～+55℃
Working humidity	10%-90%RH
Connecting devices	32
Dimension	75*23mm

Status Indicator and Reset

Blue indicator: indicates the Zigbee status.

Blinking: Allow devices to access the network

Steady on: The Zigbee is inactivated.

Steady off: The Zigbee is activated

Red indicator: indicates the Wi-Fi status.

Red LED on, network-connected.

Red LED flash, the hub is ready for connection.

Red LED off, WiFi network is configured, but can not connect.

To reset the gateway, press and hold the reset button for 5s. If the blue indicator blinks several times, the gateway is successfully reset.

5V Tuya Zigbee Smart Gateway Hub 3.0

Product Tags:

5V tuya zigbee smart gateway hub 3.0

TYZS3 tuya zigbee smart gateway hub 3.0

TYZS3 smartlife zigbee hub

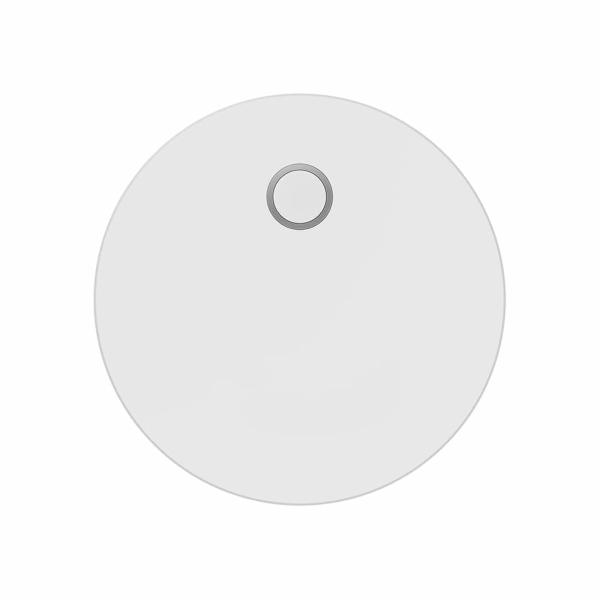

5V Tuya Zigbee Smart Gateway Hub 3.0 Images
